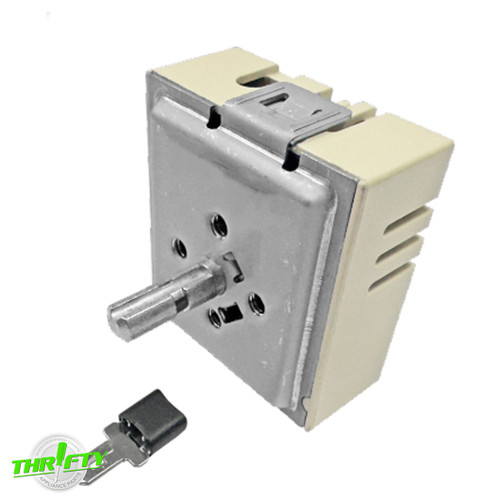

Replacement infinite switch used for some GE, Hotpoint, and Kenmore range models.
Directly Replaces: WB23M24, 344555, WB23K5036, WB23M0024, 1720, AH236384, AP2023855, EA236384, PD00001306, PS236384, WB24T10025, 164D1816P012, 769692, AH236750, AP2024072, EAP236750, PD00001118, PS236750, WB24T10027, 164D1815P010, 769694, AH236752, AP2024074, EAP236752, PD00001191, PS236752, WB24T10029, 164D1816P008, 769696, AH236754, AP2024076, EA236754, EAP236754, PD00008555, PS236754, GEINF079DD.
Features:
- Regulates the heat level of the burner element.
- New voltage driven switch is designed to replace many GE infinite switches.
- Voltage driven design (versus current driven) allows it to fit any wattage and amperage at the rated volts.
- Can be used to replace some 6" & 8" infinites switches.
- Includes (1) Infinite Switch, (1) Adapter Terminal.
Specifications:
- Color: Gray / Almond.
- Material: Plastic / Metal.
- Electrical Specs: Fits any wattage and amperage at the rated volts.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: Regulates the heat level of the burner element.
Failure Symptoms: Cannot control the burner temperature, or cannot turn the burner on/off; Burner will not heat.
Testing: If you're unable to control an electric burner, the burner's infinite switch should be replaced.
Bonus Tip: Easily determine if the element or switch is defective by switching the non-working element with a working one. If the new element works, the the old element was defective. If the new element does not work, it likely that the switch is defective.
