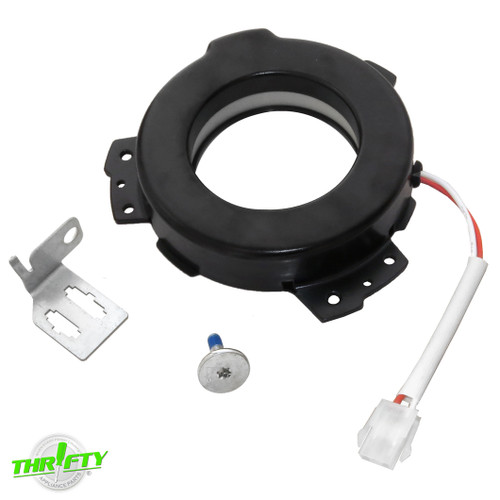

Replacement electromagnetic clutch assembly used for some Crosley, Kenmore, Maytag, and Whirlpool washer models.
Directly Replaces: W10754448, W10447973, W10817398, W10905022, 3452770, AP5956756, EAP10064562, PD00026955, PS10064562.
Features:
- Moves the internal tub and provides the movement for the agitator.
- Includes (1) Electromagnetic Clutch with Harness, (1) Bracket, (1) Screw.
Specifications:
- Color: Black / White / Orange / Gray.
- Material: Metal / Plastic.
- Electrical Specs: 120V, 60Hz, 0.22A.
- Dimensions: 6-1/8"L x 6"W x 1-1/8"H.
- Additional Dimensions: Harness and plug extend 6-1/4" from clutch. 3" inner diameter / 5" outer diameter.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
