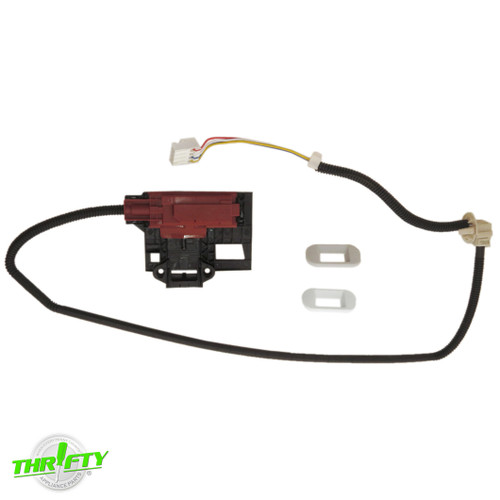

Replacement lid latch used for some Admiral, Amana, Crosley, Inglis, Kenmore, Maytag, Roper, and Whirlpool washer models.
Directly Replaces: WPW10404050, W10404050, W10404050VP, W10744659, W10238287, 1938607, AH3497627, AP5263307, EAP3497627, PD00003596, PS3497627.
Features:
- Indicates to the washer when the lid is closed, allowing it to begin the next cycle.
- Used on top loading units.
- 4 Wire Plug Connection.
- Includes (1) Lid Latch, (1) White Bezel, (1) Gray Bezel, Instructions.
Specifications:
- Color: Gray / White / Black.
- Material: Plastic / Metal.
- Electrical Specs: 120V, 10Amp, 1/3 HP lock circuit..
- Switch Dimensions: 4-13/16"L x 4"W x 1"H.
- Additional Dimensions: Harness and plug measure approximately 43"L; Bezels measure 2-1/4"L x 1"W x 5/8"H, with approx. 1-13/16" between bezel mounting holes (center to center).
- View Instructions.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
The lid latch is used on top load machines to lock the lid in place while the unit is running.
Failure Symptoms: When the lid latch fails the unit may not be able to fill, wash, drain, or spin.
How to Test: Use a multi-meter to test the latch for electrical continuity. If there is no continuity, replace the switch.
*Continuity is the presence of a complete path for current flow. A continuity test is a quick check to see if a circuit is open or closed. Only a closed, complete circuit (one that is switched ON) has continuity.
*Continuity testing should be attempted only when voltage is NOT present in the circuit being tested. Always unplug the device or turn off the main circuit breaker before attempting a continuity test. Ensure that all capacitors are safely discharged.
Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.
-
