Replacement door switch, push-to-start switch, and thermal fuse used for some Amana, Crosley, Inglis, Kenmore, Roper, and Whirlpool dryer models.
Directly Replaces: WPW10237959, W10237959, 1548433, 3406109, 1548433, AP6017525, EAP11750824, PD00022931, PS11750824, WPW10420741 W10420741, 2311744, AP5607379, EAP3632880, PD00008413, PS3632880, PS11754549, WP3392519, 3392519, WP3392519VP, 80005, 694511, 3388651, ET401, SET401, G4AP0500, TJ90SET401, 2986, AP6008325, EAP11741460, PD00002311, PS11741460, WE4X857, WE04X0857, 276927, AH268283, AP2042879, EAP268283, PD00030682, PS268283.
Features:
- Safety Switch Set.
- Includes (1) Door Switch with 2-Pin Harness, (1) 2-Terminal PTS Switch, (1) Thermal Non-Resettable Fuse.

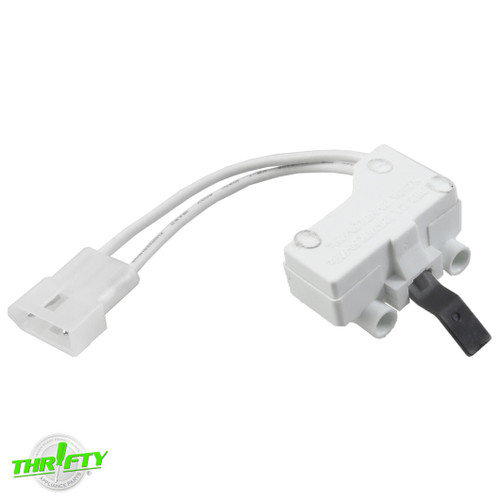

APNW10237959 Door Switch Specifications:
- Color: White with black actuator.
- Material: Plastic / Metal.
- Electrical Specs: 120-240V, 50-60Hz, 11A, 1/3HP.
- Switch Dimensions: 1-1/8"L x 1-7/8"W x 1"H.
- Additional Dimensions: Harness and plug assembly measure approx. 4"L.
APNW10420741 PTS Switch Specifications:
- Color: White / Black / Brass.
- Material: Plastic / Metal.
- Finish: Satin.
- Electrical Specs: 120V.
- Dimensions: 2-3/8"L x 2"W x 2-1/8"H.
APN3392519 Thermal Fuse Specifications:
- Color: White / Black / Brass.
- Material: Metal / Plastic.
- Electrical Specs: 196°F single blow limiter.
- Overall Dimensions: 3/4"L x 9/16"W x 2"H.
- Additional Dimensions: 3/16" spade terminals.
Compatible Models:
