Replacement burner control knob used for some Samsung range models.
Directly Replaces: DG94-03500A, DG94-04396A, AP7203002, EAP16813690, OEM28812010, PD00083650, PS16813690, DG94-03500U, 4961663, AP7002962, EAP16554218, OEM28011850, PD00067705, PS16554218, DG94-04397A, DG94-03443A, 4980268, AP7203011, EAP16813699, OEM28812046, PD00083688, PS16813699.
Features:
- Selects burner temperature.
- Used on some gas range models.
- 'D' shaped shaft insert with the flat side at the 12 o'clock (OFF) position.
- OFF LO MED HI Lite - Labeled Settings.

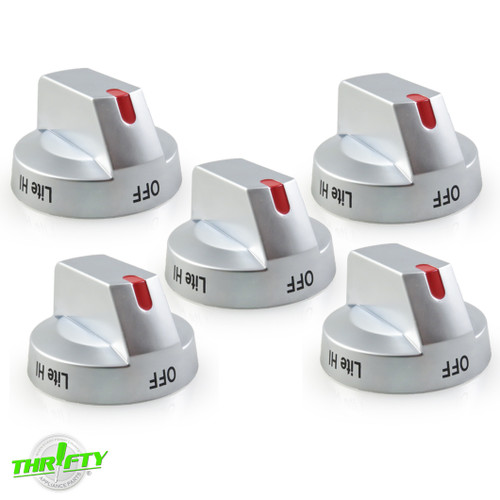

- Includes (5) Burner Knobs w/ Backplates & Shaft Spring Clips.
Specifications:
- Color: Stainless Steel with Black Labeling and Red Indicator.
- Material: Plastic with Metal Backplate and Shaft Insert.
- Finish: Satin.
- Dimensions: 2-3/8" Diameter x 1-3/8" Deep.
- Additional Dimensions: Shaft slighly inset, approx. 1/32" from being flush with back of knob. Shaft outer diameter approx. 15/16" diameter; shaft inner diameter approx. 1/4" diameter.
Note that some models may require removing the spring clip from the knob shaft for proper fitment.
View Spring Clip Removal Video
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 1 | Beginner
No disassembly and minimal tools (if any) needed.
Part Description: The burner knob turns on and controls the heat output of the burner.
Failure Symptoms: Visible damage or excessive wear; Loose fit around the burner control switch shaft.
Bonus Tip: To keep your control panel clean, use a damp cloth and mild dishwashing liquid. You can also use glass cleaner, but don't spray it directly onto the panel. Instead spray the cleaner on your cloth before wiping the panel.
