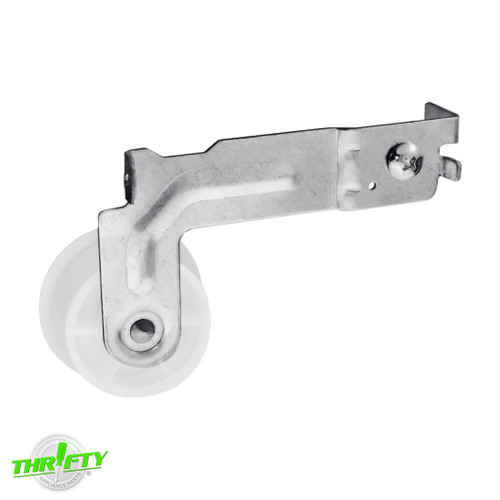

Replacement idler pulley and spring used for some Samsung dryer models.
Directly Replaces: DC93-00634A, DC97-07509B, DC61-01230B, DC96-00882B, DC96-00882C, B06XKB5FS, DE634A, 4455850, AP6038887, EAP11771601, PD00032419, PS11771601, DC61-01215B, DC61-01215A, 2069087, AP4211487, EAP4206154, PD00027514, PS4206154.
Features:
- New heavy duty style with ball bearing.

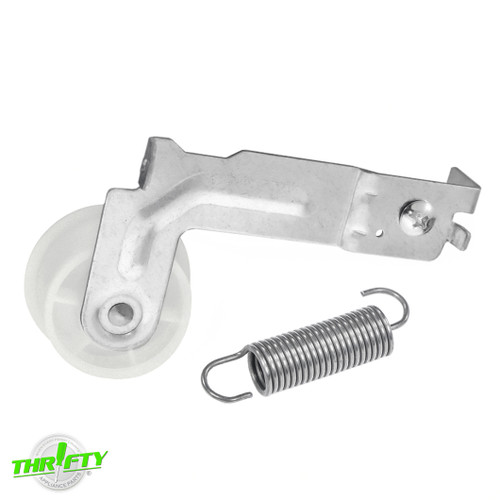

- Includes (1) Idler Arm and Pulley Assembly, (1) Installation Screw, (1) Idler Spring.
APNDC93-00634A Idler Arm & Pulley Specifications:
- Color: White / Gray.
- Material: Plastic / Metal
- Overall Dimensions: 6"L x 1-9/16"W x 3-7/8"H.
- Pulley Dimensions: 2-7/16" diameter (including lip); 2-1/16" diameter (excluding lip).
APNDC61-01215B Idler Spring Specifications:
- Material: Metal.
- Dimensions: 2-5/8"L x 5/8"W x 1"H.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: The idler pulley puts tension on the drive belt, helping it spin the dryer drum.
Failure Symptoms: Dryer makes noise and/or drum will not spin.
Testing: Check the idler pulley for signs of wear and make sure it spins freely on the shaft. If the idler pulley is stuck, worn or damaged, it should be replaced.
Bonus Tip: As preventative maintenance, it's recommended to replace the drive belt at the same time as the idler pulley.
