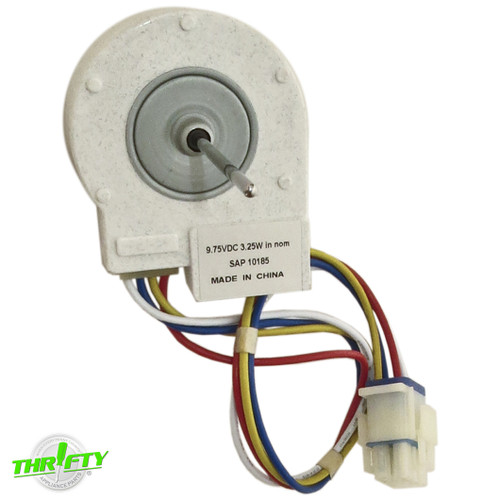

Replacement evaporator fan motor used for some Americana, GE, and Hotpoint refrigerator models.
Directly Replaces: WR60X10185, WR60X10154, WR60X10043, WR23X10346, WR23X10350, WR23X10353, WR23X10355, WR23X10364, WR23X10404, WR23X10405, WR23X10406, WR60X10043, WR60X10059, WR60X10068, WR60X10083, WR60X10084, WR60X10099, WR60X10149, WR60X10152, WR60X10154, WR60X10157, SM10185, 197D2039P007, 197D2039P008, 197D2039P013, UDQT26GE4, 1170107, AH1019114, AP3875639, EA1019114, EAP1019114, PD00000986, PS1019114.
Features:
- Pulls air through the evaporator coils to remove heat from the circulating air within the unit.
- DC evaporator fan motor.
- Located in the freezer compartment.
- Includes (1) Evap. Fan Motor and 4-Wire Harness Assembly (has two empty slots in the 6 pin wire connector).
Does not include 2-wire thermistor in the harness assembly. The 6-wire assembly that includes the thermistor requires a different replacement motor assembly.
Specifications:
- Color: Marbled White and Gray.
- Material: Plastic / Metal.
- Electrical Specs: 9.75DC, 3.25W.
- Dimensions: 3"L x 2-3/8"W x 3-3/8"H.
- Additional Dimensions: Harness and plug measure 13 3/4"L.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Failure Symptoms: Poor cooling in both sections, but especially in the refrigerator section.
How to test: Measure voltage at the fan motor wire terminals using a multimeter. If voltage is present, the motor is faulty.
Often times, the fan blade may be manually turned and it may continue slowly or start turning by itself. That is an accurate way to test without the use of a meter.
Repair Tip: Lubricating the motor almost never helps long term, the motor should be replaced. When installing the fan blade, make sure it is not pushed onto the motor shaft too far as it may bind and not turn smoothly.
Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.
-
