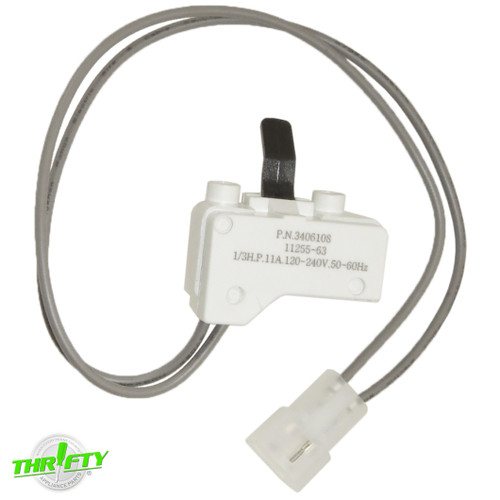

Replacement door switch used for some Admiral, Amana, Crosley, Estate, Inglis, Kenmore, KitchenAid, Magic Chef, Maytag, Roper, and Whirlpool dryer models.
Directly Replaces: WP3406105, 3406105, WP3406105VP, 3405104, DE6105, 528947, AH346703, AP6008560, EA346703, EAP11741700, PD00003898, PS11741700, PS346703.
Features:
- Acts as a safety switch that indicates and halts operation when the door is open or when a belt is broken on some units.
- Single Pole, Double Throw (SPDT) 3-Wire Switch.
- Includes (1) Switch and 3-wire Harness Assembly.
Specifications:
- Color: Off-White / Black / Gray.
- Material: Plastic / Metal.
- Electrical Specs: 120-240V, 50-60Hz, 11A, 1/3HP.
- Switch Dimensions: 1-3/4"L x 1-5/8"W x 1-1/4"H.
- Harness and plug measure 7-3/4"L.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: The door switch acts as a safety switch that indicates and halts operation when the door is open or when a belt is broken on some units.
Failure Symptoms: Dryer / Washer will not start.
Testing: Most units that use a lid/door switch will make an audible clicking noise when the switch activates. If after starting your unit, you do not hear the switch clicking to lock the door, it's likely defective. To confirm, use a multimeter to check for continuity. If there's no continuity, replace the switch. If your dryer uses a belt switch, you should listen for a humming noise after starting the dryer. If there is no humming check the belt switch for continuity. If no continuity, the switch should be replaced.
Bonus Tip: Overloading the dryer is a common cause of broken dryer parts. Learn your dryer's max capacity to get the best longevity out of it.
Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.
-
Whirlpool dryer door switch 3406105
This switch perfectly replaced my original 3406104 switch. Was a breeze to replace. Works like it was made to. Happy Days!
