Replacement thermal cut-off fuse and high-limit thermostat kit used for some Admiral, Amana, Crosley, Estate, Inglis, Kenmore, KitchenAid, Magic Chef, Maytag, Roper, and Whirlpool dryer models.
Directly Replaces: 279816, 2651, 279816VP, 3399848, 3977393, AP3094244, AH334299, EA334299, EAP334299, PD00002348, PS334299, B00FMXXI72, B00PDX9WHG, B00IQ9VOJS, B00IQ9VNLW, B00PDXA1XK, B00GAEVBYO, B0156N8ELC, B0066EME8U, B0066EMMUU, B00PDX9YME.
Features:
- The thermal cut-off kit prevents the dryer from overheating if the high limit thermostat fails.
- Includes (1) 3977393 thermal cut-off (309°) replacement, (1) 3390291 'new-style' hi-limit thermostat (L250-80F) replacement, (2) screws, and (1) wiring set (jumper wire and extra terminals).
- Included wiring set is used for replacing 'old-style' push-on hi-limit thermostats.

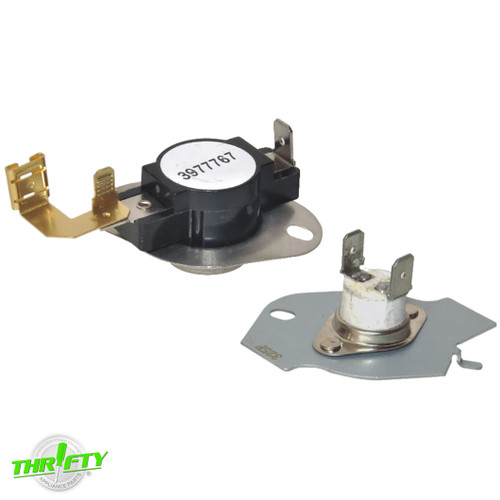

- For the 'old-style' 3977767 thermostat and 3977393 fuse replacement kit, (with the press-on terminal attachment), order APN197.
APN279816 Thermostat Kit Specifications:
- 3390291 Hi-limit Thermostat Replacement
- Color: Black / Gray / Red (Wire).
- Material" Plastic / Metal.
- Electrical Specs: L250-80F: 250°F open, 80°F differential, 170°F close.
- Dimensions: 1-1/2"L x 1-1/16"W x 2"H.
- Additional Dimensions: Wire jumper measures 7-3/8"L.
- 3977393 Thermal Fuse Cut-off Replacement
- Color: White / Gray.
- Material: Ceramic / Metal.
- Electrical Specs: L309F, One-Time Fuse (must be replaced once blown.)
- Dimensions: 1-1/8"L x 1"W x 2-1/8"H.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: The thermal cut-off kit prevents the dryer from overheating if the high limit thermostat fails.
Failure Symptoms: Dryer will not heat at all, or takes an increasing amount of time to dry your clothes.
Testing: Use a multimeter to test it for continuity in the fuse and thermostat. If there is no continuity in either piece, it should be replaced.
Bonus Tip: A blown thermal fuse indicates a restriction in the exhaust vent that runs from the dryer to the outside. Be sure to check the dryer venting whenever you need to replace the thermal fuse. Also check for build up on your lint filter screen. Residue from dryer sheets and fabric softener can build up on lint screens and restrict air flow.
Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.
-
