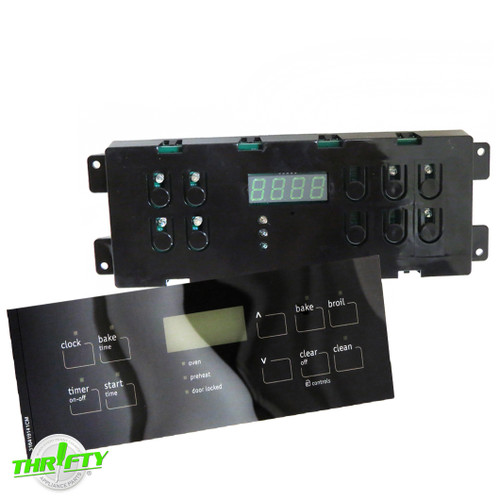

Replacement control board and overlay used for some Crosley, Frigidaire, Kenmore, Tappan, and White-Westinghouse range models.
Directly Replaces: 5304509493, 316418200, 316557100, SF5401-S9506, A03619506, 4547461, AP6248375, EAP12114577, PD00038168, PS12114577, 316419141, 316352004, 316419103, 316419109, 316419139, 316419142, 318214514, 1613964, AH2581771, AP4561566, EA2581771, EAP2581771, PD00023058, PS2581771.
Features:
- Electrical control and overlay for the range unit.
- Control board has (10) indicator lights.
- Includes (1) 10-Button Control Board, (1) Button Overlay.
APN316419141 Overlay Specifications:
- Color: Black with white and gray markings.
- Material: Plastic with Adhesive Back.
- Finish: Glossy.
- Dimensions: 9-3/8"L x 1/32"D x 3-3/4"H.
APN5304509493 Control Board Specifications:
- Color: Black.
- Material: Plastic / Metal.
- Finish: Glossy.
- Dimensions: 10-3/8"L x 1-7/8"W x 3-3/4"H.
NOTE: Due to the sensitive nature of this item, it comes sealed in an anti-static bag. This bag safeguards the part from static build-up that can be damaging to it's electronic components. Because of this, we are unable to accept returns for this part once the anti-static bag has been opened.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
