Replacement ice maker and water inlet valve used for some Crosley, Electrolux, Frigidaire, Kenmore, and White-Westinghouse refrigerator models.
Directly Replaces: 5303918277, 3206306, 218226700, 218699501, 218713500, 240352401, 240352403, 5303291912, ER5303918277, TJ5303918277, RIM277, 941760, AH735469, AP3160597, EA735469, EAP735469, PD00000133, PS735469, 242252702, 240321801, 240505101, 240505102, 240508101, 240508102, 240531101, 241734301, 241734302, 7241734301, WV2702, 2692163, AP5671757, EAP7784018, PD00000153, PS7784018.
Features:
- Water valve controls the flow of water to the ice maker to make ice for the dispenser.
- Installed ice maker harness has four round female connectors at the end of the plug.
- Ice maker assembly includes an adapter for converting the harness to a three round female and one round male connector plug.
- Water valve uses new quick connect fittings that replace older style screw on fittings.
- Water valve with (4) outlets.

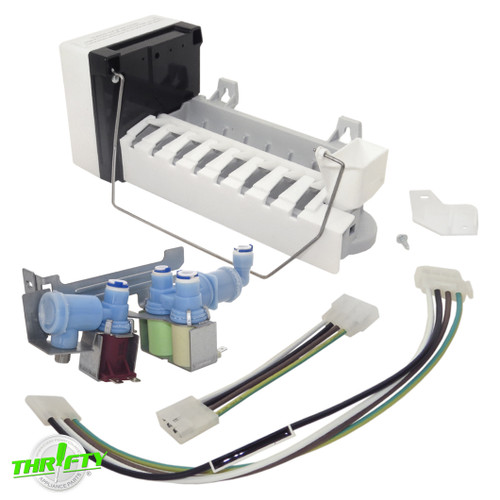

- Includes (1) 8-Cube Ice Maker, (1) Bail Arm, (1) Wire Harness, (1) Wire Harness Jumper / Adapter, Installation Hardware, (1) 3-Solenoid Water Valve with Bracket, Instructions.
APN5303918277 Ice Maker Specifications:
- Color: White / Gray / Black.
- Material: Plastic / Metal.
- Finish: Glossy.
- Electrical Specs: 115V, 60Hz, 185W, 1.6A.
- Ice Maker Dimensions: 11-3/4"L x 4-5/8"W x 4-3/4"H.
- Additional Dimensions: 4-Wire harness and plug measures approx. 14-3/8"L; Harness jumper/adapter measures approx. 6-5/8"L.
- View Instructions.
APN242252702 Water Inlet Valve Specifications:
- Color: Gray / Blue / Green / Yellow / Maroon.
- Material: Plastic / Metal.
- Electrical Specs: 120V (each), 50/60Hz (each), 20W (Maroon), 20W (Yellow), 35W (Green).
- Dimensions: 7-1/8"L x 3-3/4"W x 3-1/4"H.
- Additional Dimensions: (1) 1/4" tube inlet; (3) 5/16" tube outlets, (1) 1/4" tube outlet.
- View Instructions.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
