Replacement rear bearing kit used on some Crosley, Frigidaire, Gibson, Kelvinator, Kenmore, Tappan, Universal / Multiflex, and White-Westinghouse dryer models.
Directly Replaces: 5303281153, 3281153, 85-852, DE724, Q000142850, Q142850, WQ142850, B005B9DP4I, 1851, AH459829, AP2142648, EA459829, EAP459829, PD00000097, PS459829, 131777700, 131168200, 131825900, 131724301, 131205400, 5303281019, 5303281020.
Features:
- Supports the dryer drum.
- Pre-tapped plate for easy installation.

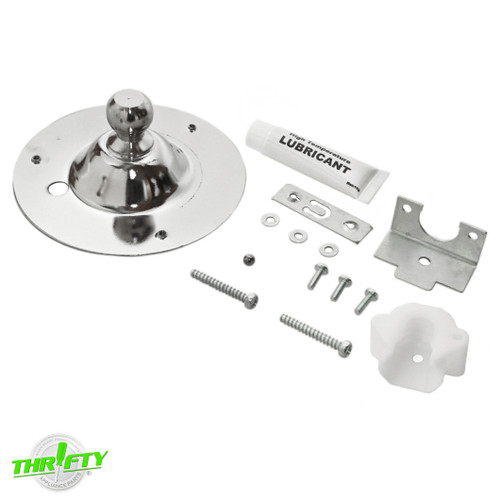

- Includes 131777700 ball shaft replacement, (3) 131168200 ball shaft screw replacements, (3) washers, 131825900 Teflon shaft bearing replacement, 131724301 shaft bearing bracket replacement, (2) 131205400 shaft bracket screw replacements, 5303281019 ball bearing replacement, 5303281020 ball bearing clip replacement, and high-temperature lubricant.
Specifications:
- Material: Metal / Teflon.
- Ball Shaft Dimensions: 5-1/8"L x 2-1/4"W x 5-1/8"H.
- Additional Dimensions: Bearing measures 1-15/16"L x 1"W x 1 3/8"H with mounting holes 1-1/2" apart (center to center).
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: The rear bearing helps to support the dryer drum.
Failure Symptoms: Dryer making a squealing or grinding noise when rotating.
Testing: Remove the dryer belt and try turning the drum by hand. If the drum will rotate freely, and without noise, the bearing is likely not the problem. However, the drum is difficut to turn or makes a squealing or grinding noise the rear drum bearing could need replaced.
Bonus Tip: Overloading the dryer is a common cause of broken dryer parts. Learn your dryer's max capacity to get the best longevity out of it.
