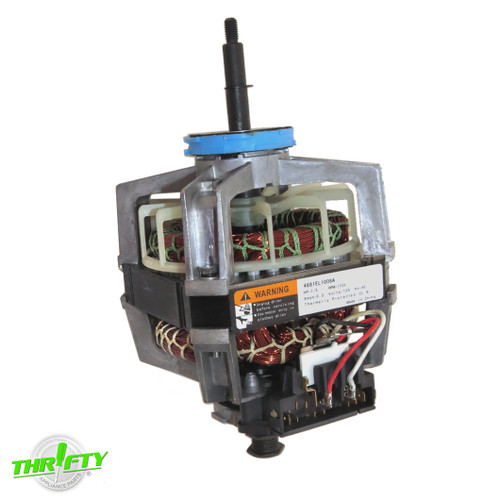

Replacement drum drive motor and belt used for some Kenmore and LG dryer models.
Directly Replaces: 4681EL1008A 4681EL1008K, 4681EL1002A, 4681EL1002B, 4681EL1006A, 4681EL1006F, 4681EL1008B, 4681EL1008H, SM1008, DPH224L01, DMP270L3, 1330330, AH3523290, AP4438218, EA3523290, EAP2400858, PD00001732, PS2400858, PS3523290, 4400EL2001F, 4400EL2001A, 4400EL2001C, 4400EL2001E, 4PH2337, 4115028, AP5972814, EAP11705916, PD00026116, PS11705916.
Features:
- Drives the rotation of the drum.
- Motor is thermally protected with threaded shaft on one end, belt pulley on the other end.
- Includes (1) Drive Motor, (1) 4-Rib Belt.
APN4681EL1008A Motor Specifications:
- Color: Gray / White / Blue / Black / Copper.
- Material: Metal / Plastic.
- Electrical Specs: 120V, 60Hz, 6.2A, 1/3HP, 1725RPM, CL.B.
- Overall Dimensions: 10-1/2"L x 5-1/4"W x 5-1/4"H.
APN4400EL2001A Belt Specifications:
- Color: Black.
- Material: Rubber.
- Overall Dimensions: 92"L x 1/4"W x 1/16"H.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
