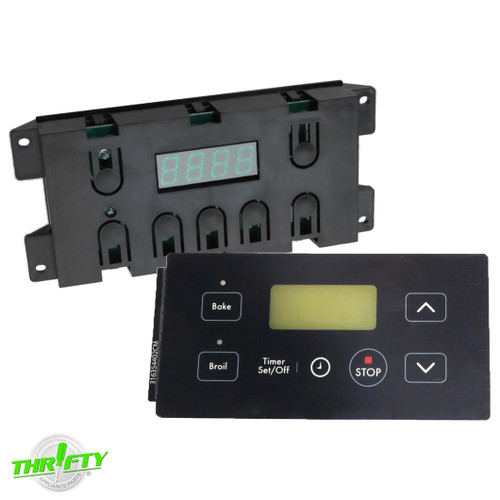

Replacement control board and button overlay used for some Frigidaire and Kenmore range models.
Directly Replaces: 316455430, 316222810, 1197179, 1197181, AH1528270, AP3959388, EA1528270, EAP1528270, PD00000635, PS1528270, 316354400, B00M25BM0S, 1793684, AH3408948, AP4587665, EA3408948, EAP3408948, PD00000679, PS3408948.
Features:
- Electrical control and user overlay for the range unit.
- Board uses (2) indicator lights and has a 5-pin wire connection.
- Includes (1) 7-Button Control Board, (1) 7-Button Control Board Overlay.
APN316354400 Overlay Specifications:
- Color: White with Gray and Red markings.
- Material: Plastic.
- Finish: Glossy.
- Dimensions: 6-1/2"L x 1/16"W x 3-3/16"H.

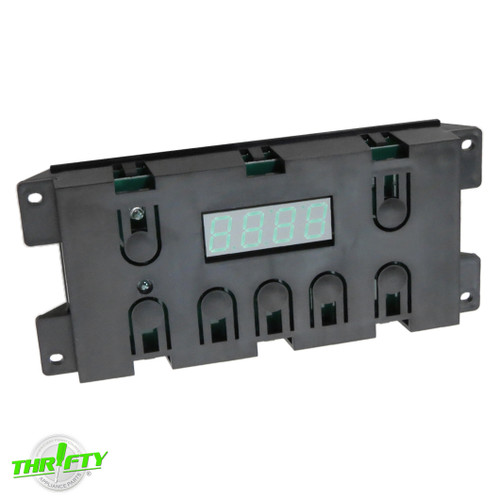

APN316455430 Control Board Specifications:
- Color: Black.
- Material: Plastic / Metal.
- Finish: Satin.
- Dimensions:7-3/8"L x 2"D x 3-3/8"H.
NOTE: Due to the sensitive nature of this item, it comes sealed in an anti-static bag. This bag safeguards the part from static build-up that can be damaging to it's electronic components. Because of this, we are unable to accept returns for this part once the anti-static bag has been opened.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
