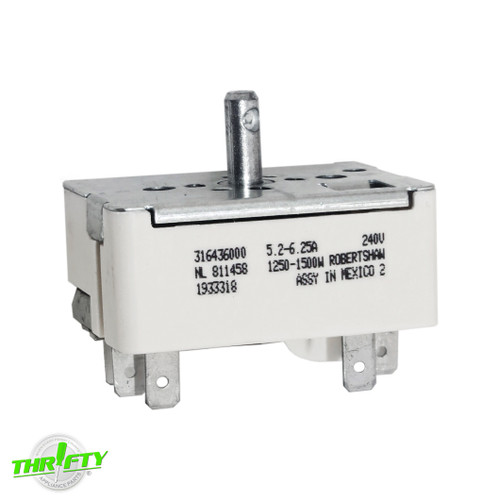

Replacement burner infinite switch used for some Admiral, Crosley, Electrolux, Frigidaire, Gibson, Ikea, Kelvinator, Kenmore, Tappan, and White-Westinghouse range models.
Directly Replaces: 316436000, 5304506424, 316021500, 1155394, AH1145039, AP3890378, EA1145039, EAP1145039, PD00000295, PS1145039.
Features:
- Regulates the heat level of the burner element.
- Used with some 6" elements.
- Includes (1) 5-Terminal Infinite Switch.
Specifications:
- Color: Gray / Almond.
- Material: Plastic / Metal.
- Electrical Specs: 240V, 5.2-6.25A, 1250-1500W.
- Dimensions: 2-1/8"L x 1-3/4"W x 2-5/16"H.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: Regulates the heat level of the burner element.
Failure Symptoms: Cannot control the burner temperature, or cannot turn the burner on/off; Burner will not heat.
Testing: If you're unable to control an electric burner, the burner's infinite switch should be replaced.
Bonus Tip: Easily determine if the element or switch is defective by switching the non-working element with a working one. If the new element works, the the old element was defective. If the new element does not work, it likely that the switch is defective.
