Replacement heating element and thermostat set used for some Amana, Inglis, Kenmore, Maytag, and Whirlpool dryer models.
Directly Replaces: WP8544771, 8544771, W10836011, WP8544771VP,DE771, PAT#7154072, 1180054, AH990361, AP3866035, AP6013115, EA990361, EAP11746337, PD00002399, PS990361, PS11746337, 279973, 279973VP, 3391913, 3404151, 3404152, 3977395, 8318314, 897710, AH334387, AP3094323, EA334387, EAP334387, PD00002626, PS334387.
Features:
- Heating element produces heat while the dryer is in operation; The thermostat & thermal cut-off kit monitors the temperature and prevents the dryer from overheating.
- Heating element requires re-using the housing from the original element.
- Insulators and restring already attached to heater for easy installation.

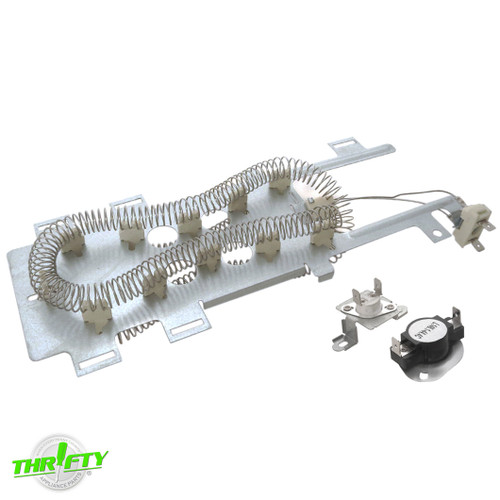

- Includes (1) APN8544771 Heater Coil with (2) 5/16" Male Terminals, (1) APN279973 Thermostat & Thermal Cutoff Set.
APN8544771 Element Specifications:
- Material: Metal / Ceramic.
- Electrical Specs: 240V, 5400W.
- Overall Dimensions: 13-7/8"L x 6-1/2"W x 2-1/2"H.
APN279973 Thermostat & Fuse Set Specifications:
- 3391914 High Limit Thermostat Replacement
- Color: Black / Gray.
- Material: Plastic / Metal.
- Electrical Specs: L295-80F; 295°F open, 80°F differential, 215°F close.
- Dimensions: 1-1/2"L x 1-1/8"W x 2"H; 1-5/8" between mounting holes (center to center).
- 8318314 Thermal Cutoff Fuse Replacement
- Color: White / Gray.
- Material: Metal / Ceramic.
- Electrical Specs: 352°F, One-Time Fuse (must be replaced once blown).
- Dimensions: 1-1/4"L x 1-1/4"W x 2-3/16"H; 1-5/8" between mounting holes (center to center).
Compatible Models:
