Replacement heating element and partial housing assembly used for some Admiral, Amana, Crosley, Estate, Inglis, Kenmore, KitchenAid, Magic Chef, Maytag, Roper and Whirlpool dryer models.
Directly Replaces: 279838, WP279837, 279837, 279838A, 279838VP, 3398063, 3398064, 3403585, 8565582, W10724237, 4531017, 4617547, 4675511, 5324919, 5329098, 5895597, 2438, AP3094254, AH334313, EA334313, EAP334313, PD00002351, PS334313.
Features:
- Produces heat while the dryer is in operation.
- Includes (1) Heating Element with Partial Housing and (2) 5/16" male terminals.
- Must re-use remaining housing from the old heating assembly.
- Insulators and restring already attached for easy installation.
- Does not include thermostat or thermal fuse.

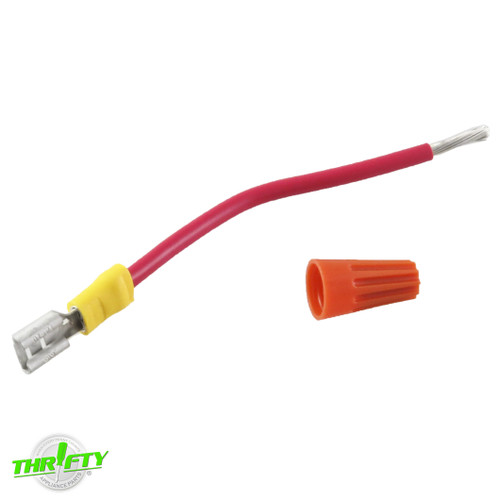

Per the manufacturer, you may need a wire connector to install heating element.
Specifications:
- Material: Metal / Ceramic.
- Electrical Specs: 240V, 5400W.
- Overall Dimensions: 9-15/16"L x 6-15/16"W x 2-5/8"H.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: The heating assembly produces heat while the dryer is in operation.
Failure Symptoms: Dryer overheats, will not heat at all, or takes an increasing amount of time to dry your clothes.
Testing: Check for damage or breaks in the element coil. Use a multimeter to test it for continuity. If there is damage to the coil or if heating element does not have continuity, replace it.
Bonus Tip: The thermal fuse and high limit thermostat should also be checked for failure, as they may also be affected.
Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.
-
pleased
will use again.
-
got it fast. works great
works great
-
dryer part
great product, very fast delivery
-
Best of the Best.........Wow...............
only a few days old,so far all is swell...dryer is drying<<<< mama happy..<<<<<.you guys are the best..............outstanding parts,,,,even better service.....thank you....very pleased....
-
Saved a bunch of money
After searching locally and on the web for a replacement heating coil, thrifty Appliance parts had the best price by far! Being retired this was really helpful. By doing it myself I didn’t have to pay for a service man to come out. Part was an exact fit. Thank you so much! Robert W.
-
Great value
I always order from Thrifty when they have my parts. Good service at a fair price.
-
The coil and thermostats that I bought.
I can't really say how I like the products yet as I have just installed them and don't know how long they will last. They are working very well so far.
I really do appreciate the great pricing though. And the order came to me in a very short time from the time that I ordered it. That was great and very much appreciated.
The only thing that I didn't like that had happened was that the cheap shipping box, that the product was shipped in, had the corner torn and the edge of the coil was bent. I was surprised that the thermostats had not fallen out and gotten lost as the hole was fairly good sized. I did take pictures of the damage. Also I was able to bend the coil back into shape and install it. So as of now everything seems to be working great.
Thank you so much. I'm looking forward to doing business with you in the future at this point.
Have a great day
Craig -
Excellent service and product
I had to send my model number to Thrifty to see if they had something compatible since my dryer was older and I was having trouble finding the right part at a reasonable price. I heard back from them within the hour and ordered the part for $17 instead of the $86 the name brand company wanted. I paid $10 for shipping (still a big savings) and got my part in 2 days and my dryer was back up and running.
I will recommend Thrifty to anyone. Not only was I not disappointed, I was extremely pleased!
Thank you! -
Exactly what I ordered!
The heating element was exactly the part I ordered. It arrived in good packaging and had no damage. Although it did not fix my problem, which was my diagnosis, I have ordered another part from Thrifty Appliance Parts.
