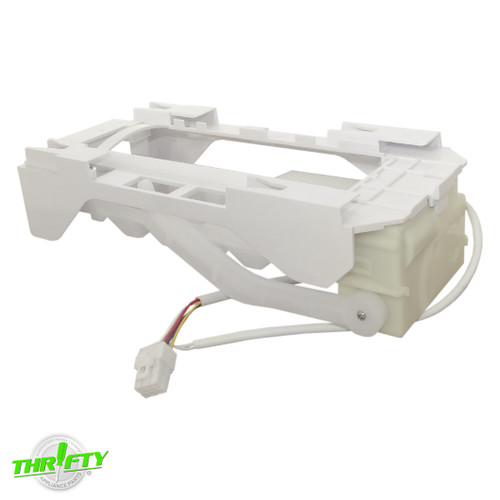

Replacement ice maker used for some Crosley, Electrolux, Frigidaire, Kenmore, and White-Westinghouse refrigerator models.
Directly Replaces: 243297609, 243297613, 243297607, 243297606, 243297603, 243297801, 243297901, 243298001, 243298101, 243298401, 243298501, NTPV407ZA1, NTGZ024Z01, NTPV402ZA1, 4404DA, 2432979, 4959766, AP6885953, AP6995374, EAP16221322, PD00063323, PS16221322.
Features:
- Creates ice to fill the ice bin.
- Flex tray design.
- DC 12V, 5W.
- Located in the fresh food cabinet on french door models with the freezer on the bottom of the unit.
- Includes (1) 10-Cube Ice Maker with Harness, (2) Zip Ties.
Specifications:
- Color: White.
- Material: Plastic / Metal.
- Finish: Glossy.
- Overall Dimensions: 10-1/4"L x 5"W x 2-7/8"H.
- Additional Dimensions: Harness and plug extend approx. 8.5" from ice maker. Zip ties measure approx. 7-3/4"L.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
Repair Skill Level: 2 | Beginner to Moderate
Minimal disassembly (if any) and some basic tools may be needed.
Part Description: The ice maker module connects to the water line to automatically create ice cubes within the refrigerator/freezer.
Failure Symptoms: Ice maker not producing any ice, or over producing ice.
Testing: Check to make sure that the ice level arm isn't in the off position, the water line isn't blocked or frozen, the water filter isn't clogged, the water inlet valve isn't defective, the thermostat isn't set too low causing it to freeze up. If none of those is causing the failure, it may be time to replace your ice maker.
Bonus Tip: If your freezer temperature is more than 10 degrees Fahrenheit, the ice maker will not work efficiently. The temperature inside the freezer compartment should be between 0 and 5 degrees Fahrenheit for proper ice maker functionality.
Disclaimer: Information and recommendations contained herein are believed to be accurate as of the date hereof. Since the conditions and methods of use of the information referred to are beyond control, ApplianceRepairForum.com and Thrifty Appliance Parts LLC, cannot be held liable for results obtained or arising from use or reliance on such information.
The User assumes responsibility associated with making test measurements, adjustments, parts replacements and any other action necessary to perform any recommended procedures. It is the responsibility of the User to ask for clarification if a recommendation is not fully understood, including the risks and hazards associated with the recommended procedures.
-
