241798231 242252603 Refrigerator Ice Maker & Water Valve for Electrolux / Frigidaire

(No reviews yet) Write a Review
SKU: APN241798231-2603_KIT
Condition: New
Compatible Brands:
Crosley
Compatible Brands:
Electrolux
Compatible Brands:
Frigidaire
Compatible Brands:
Gibson
Compatible Brands:
Kenmore
Compatible Brands:
Westinghouse
$141.83
$91.75
(You save $50.08 )

5% Off Orders Over $75

© 2024 Thrifty Appliance Parts           Some photos taken on 1" x 1" grid.

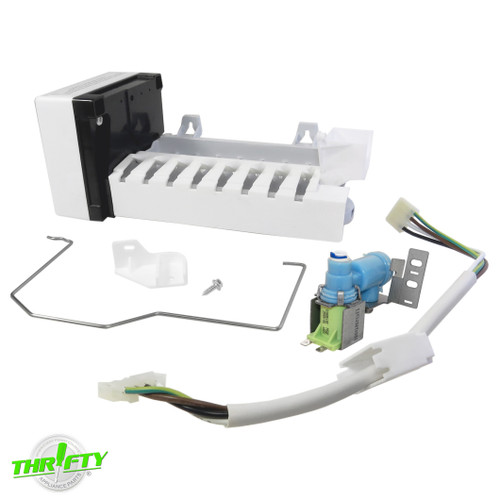

Replacement ice maker and water inlet valve used for some Crosley, Electrolux, Frigidaire, and Kenmore refrigerator models.

Directly Replaces: 241798231, 241798224, 5304456672, 241798201, 5304456671, 241642501, 241642503A, 241642511, 241798209, 241798211, 241798220, 3206327, 3206329, 5303320545, 5304445222, 5304456669, 75304445222, 75304456669, 75304456671, 75304456672, 4591526, AP6332951, EAP12364147, PD00044512, PS12085911, PS12364147, 242252603, 241803703, 218475600, 218720400, 240380301, 240519601, 241803701, 5303289068, 5303304971, 7241803701, WV2603, 2705494, AP5671756, EAP7784017, PD00000276, PS7784017.

Features:

  • Inlet valve controls the flow of water to the icemaker to make ice for the ice dispenser.
  • 8 cube, heated mold ice maker with 5 female pin connector.
  • Single coil water valve with 1/4" compression inlet and 1/4" push connect outlet.
  • Inlet valve uses new quick connect fittings which may require alterations to the existing water lines.
  • Includes: (1) 8-Cube Ice Maker, (1) 4-Wire Harness, (1) Bail Arm, Installation Hardware, (1) Water Inlet Valve with Mounting Bracket

APN241798231 Ice Maker Specifications:

  • Color: White / Black / Gray.
  • Material: Plastic / Metal.
  • Finish: Glossy.
  • Ice Maker Dimensions: 11-3/4"L x 4-5/8"W x 4-3/4"H.
  • Additional Dimensions: Harness and plug measure approx. 18"L; Bail arm measures 9-3/8"L x 1/8"W x 4-1/8"H.

APN242252603 Water Inlet Valve Specifications:

  • Color: Blue w/ Green Solenoid.
  • Material: Plastic / Metal.
  • Electrical Specs: 120V, 50/60Hz, 35W.
  • Dimensions: 3-3/4"L x 2-3/8"W x 2-3/4"H.

Compatible Models:

How do I find my model number?
