Replacement defrost timer and thermostat used for some Crosley, Frigidaire, Gibson, Kenmore, Tappan, and White-Westinghouse refrigerator models.
Directly Replaces: DT4, 215846602, 00624728, 00626234, 00628510, 00628518, 0628510, 08000559, 08006054, 08006992, 08016919, 08950148, 187484D, 187484F, 240371001, 215267800, 215846605, 215846606, 241621501, 3203657, 3001671, 3001701, 3015909, 5300187484, 5300628518, 5301090474, 5303203657, 5303211155, 5303211680, 5303270622, 5303275811, 5303321133, 5303321915, 5304457327, 5308006054, 5308006992, 604-73086, 628518, 8000559, C000062797, C62797, CC313, CC902, CC925, D007004112, D7004112, DG187005, F000111695, G000187484, G172706, G174820, G186580, G187005, G187484, GP4, M1090167, M1090474, N8000559, R000900241, R000900764, R900241, 12762, AH423801, AP2111929, EA423801, EAP423801, PD00000112, PS423801, 5303918202, 241619705, 833603, AH469510, AP2150133, EA469510, EAP469510, PD00000180, PS469510.
Features:
- Thermostat monitors the evaporator temperature and once the temp reaches a set point it activates warming to defrost the evaporator.
- Timer turns On/Off the compressor and defrost fan motors at regular intervals.
- Defrost timer set to run a 30 minute defrost cycle every 8 hours.
- The (4) terminals on defrost timer are numbered 2,1,4,3.
- L47-22F tube mount thermostat.

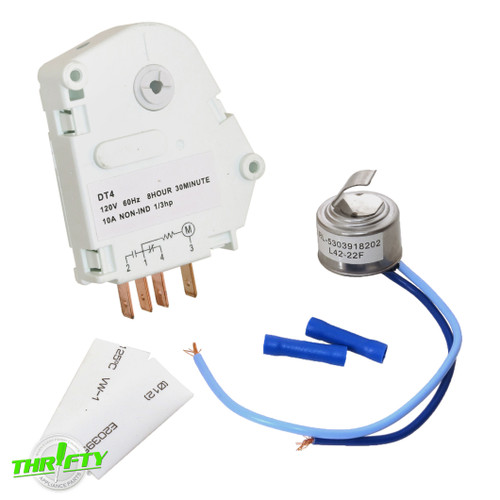

- Includes (1) 4-Terminal Defrost Timer, (1) Defrost Thermostat with Stripped Leads, (2) Butt Connectors, (2) Heat-Shrink Wraps.
APNDT4 215846602 Defrost Timer Specifications:
- Color: White.
- Material: Plastic / Metal.
- Electrical Specs: 60Hz, 10A, 1/3 HP, 8HR 30MIN Run Time.
- Dimensions: 3-1/8"L x 2-1/4"W x 1-5/8"H.
APN5303918202 Defrost Thermostat Specifications:
- Color: Gray / Blue.
- Material: Metal / Plastic.
- Thermostat Dimensions: 1-1/16"L x 1-1/16"W x 1-1/8"H.
- Additional Dimensions: Dark Blue lead is 4"L / Light Blue lead is 6"L.
Compatible Models:
Don't see your model listed? Submit this form to get help finding the right part.
